Sobya't Thawra - The revolution woodstove
October 17, 2019. Lebanon witnessed the emergence of an unprecedented civil movement as people took to the streets of Beirut demanding sweeping political and economic change. Building up exponentially to resist the pushback of corrupt political parties, The October Revolution was confronted with the heavy rains of a cold and harsh winter. The 'Sobya't Thawra', a transliteration from Arabic to mean 'the Revolution Stove', was conceived as a simple contribution to the resistance, intended to cover the most practical of needs; in addition to heating, it has a stove for cooking and two kettle niches for brewing coffee or tea. Protesters would sleep around the stove, gather nearby to hold political discussions and disassemble its smaller parts to protect it from theft during the early hours of the morning when Martyr Square would be almost deserted. 'Sobya't Thawra' is made of laser-cut black steel parts that are assembled on-site. Its set-up time is approximately one hour, making use of a centuries' old technique known as wedge joinery, making it fairly simple to reproduce anywhere.
Hosted by Urban Koop, The Revolution Woodstove has been also installed on Karakoy Pier in Istanbul as part of the 'New Civic Rituals' program of Istanbul Design Biennial (IKSV 2020), under the theme Empathy Revisited: Designs for more than one.
In hopes of keeping the revolution alive, we have made the fabrication documents (in the form of CAD) for 'Sobya't Thawra' available for
download
.
Search :
Projects
/
Design
/
Fabrication
/
System
/

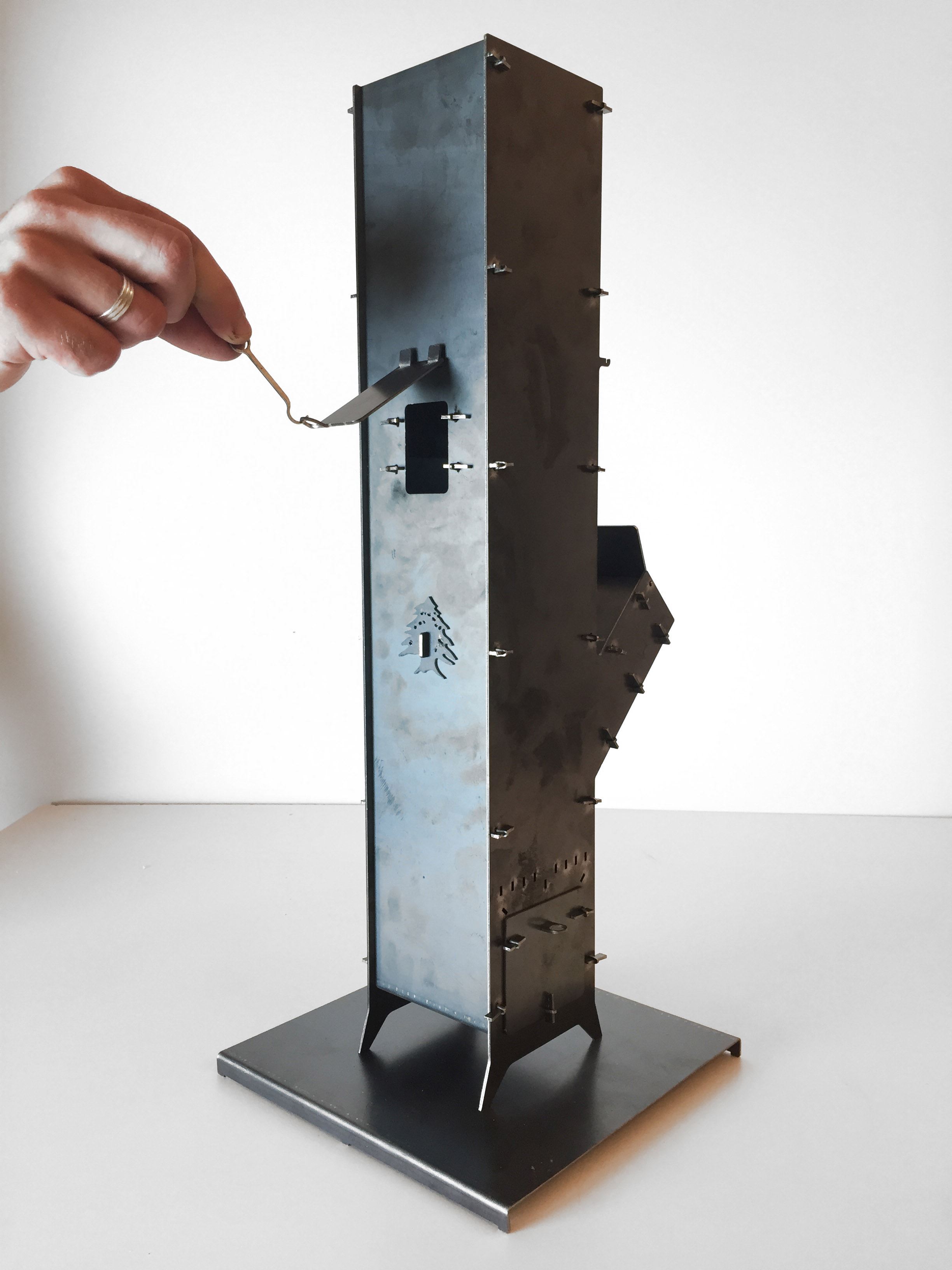

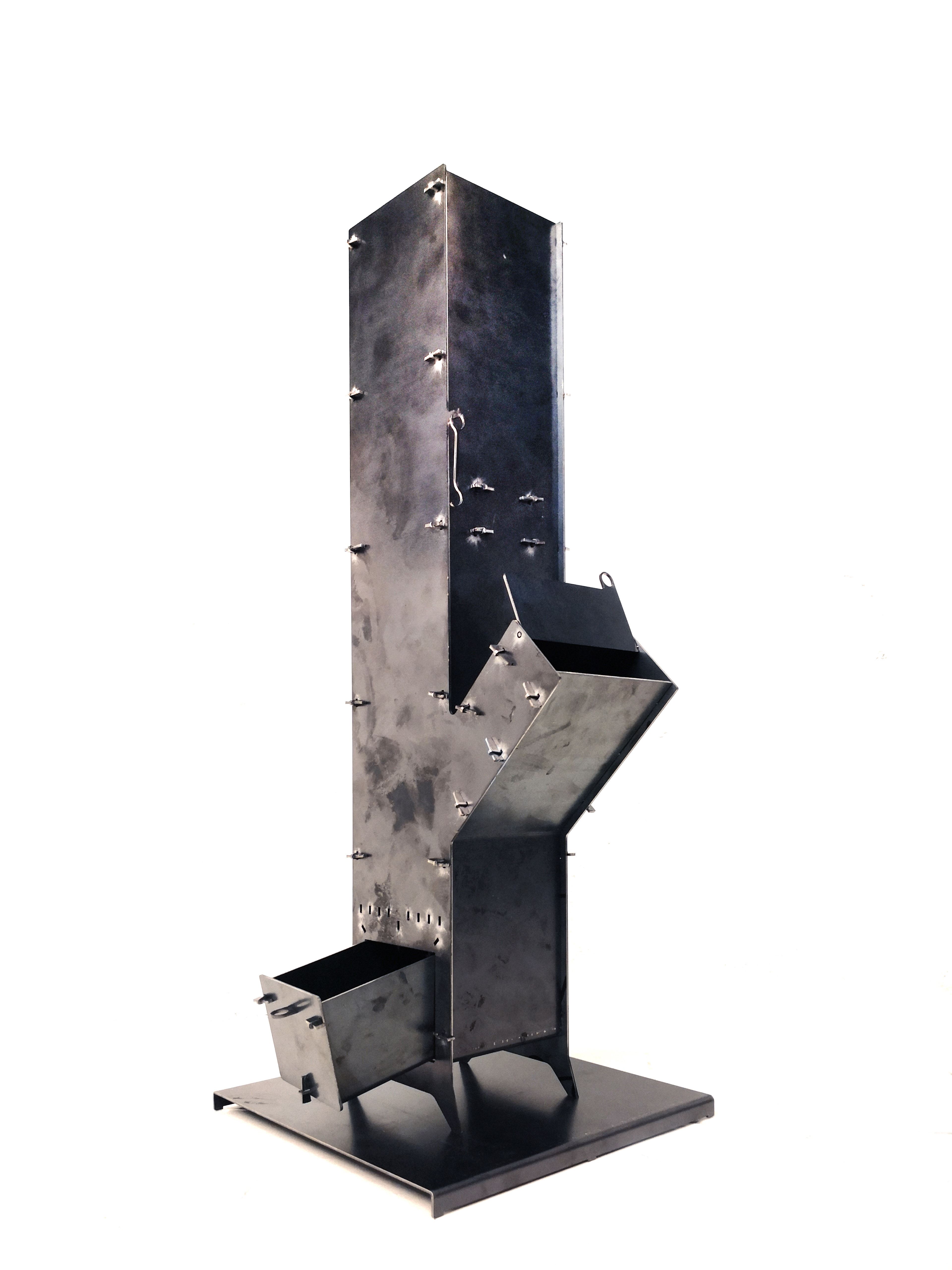

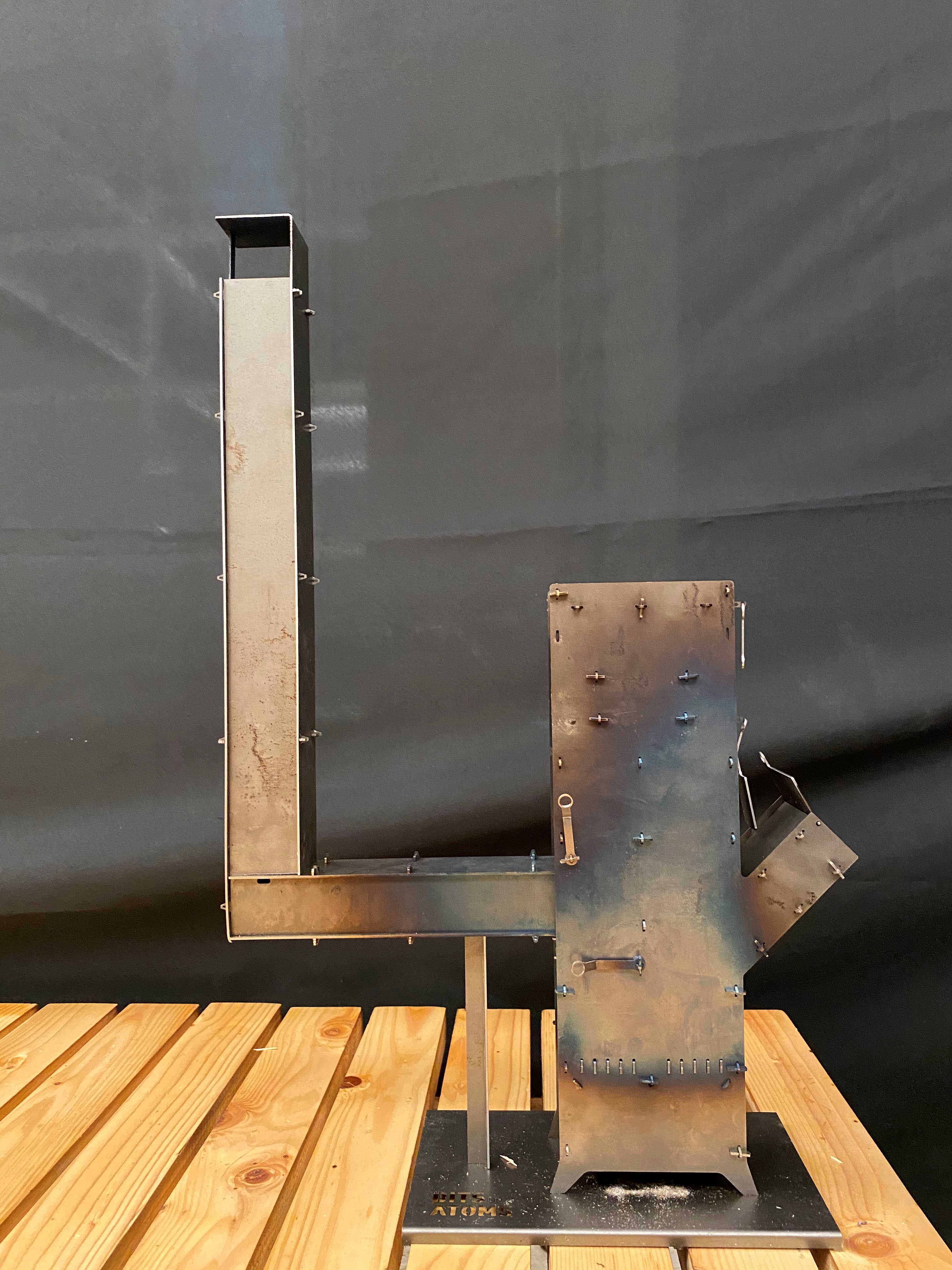

Sobya't Thawra - 1/4 scale model

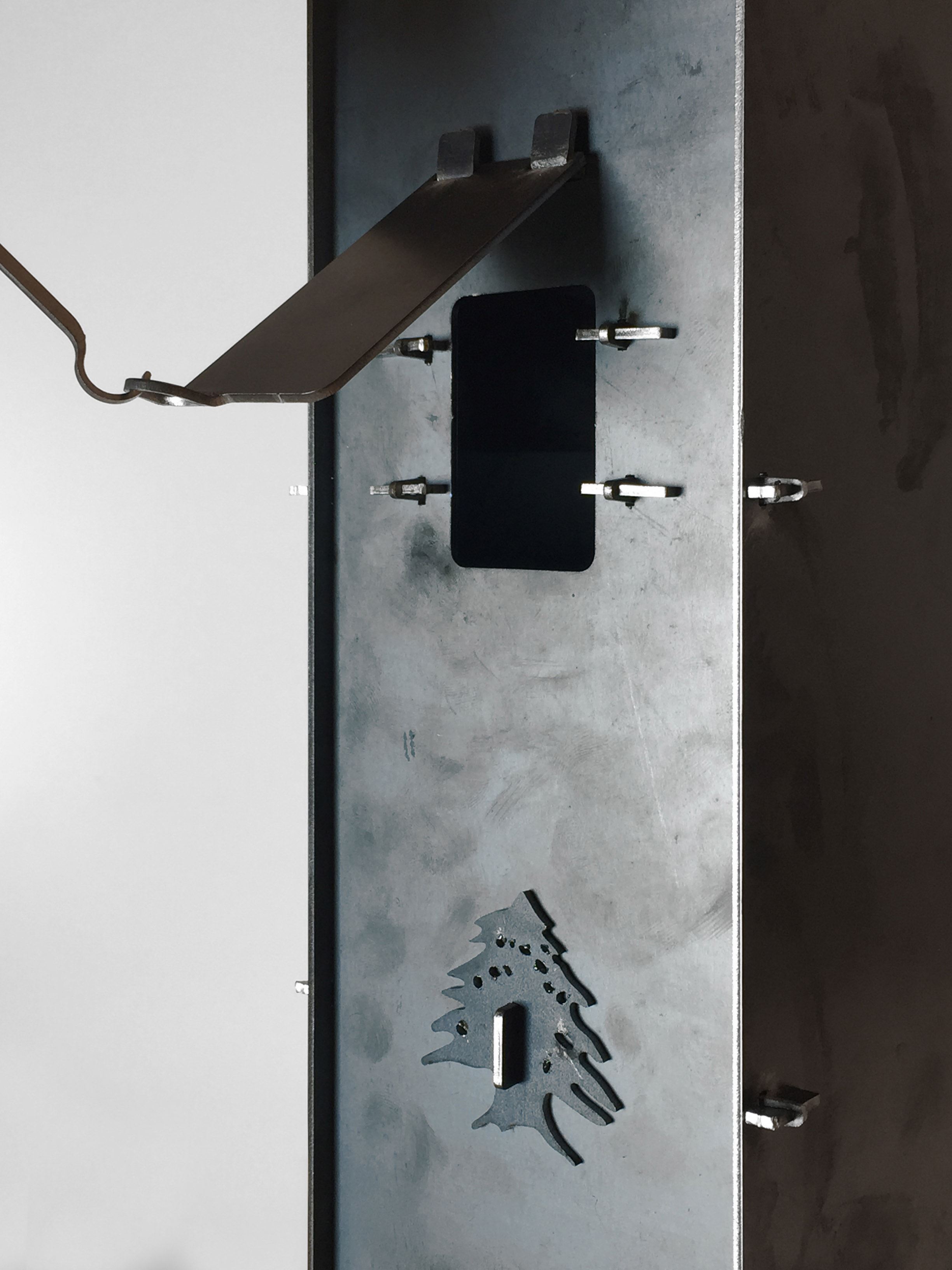

Sobya't Thawra - Oven trap

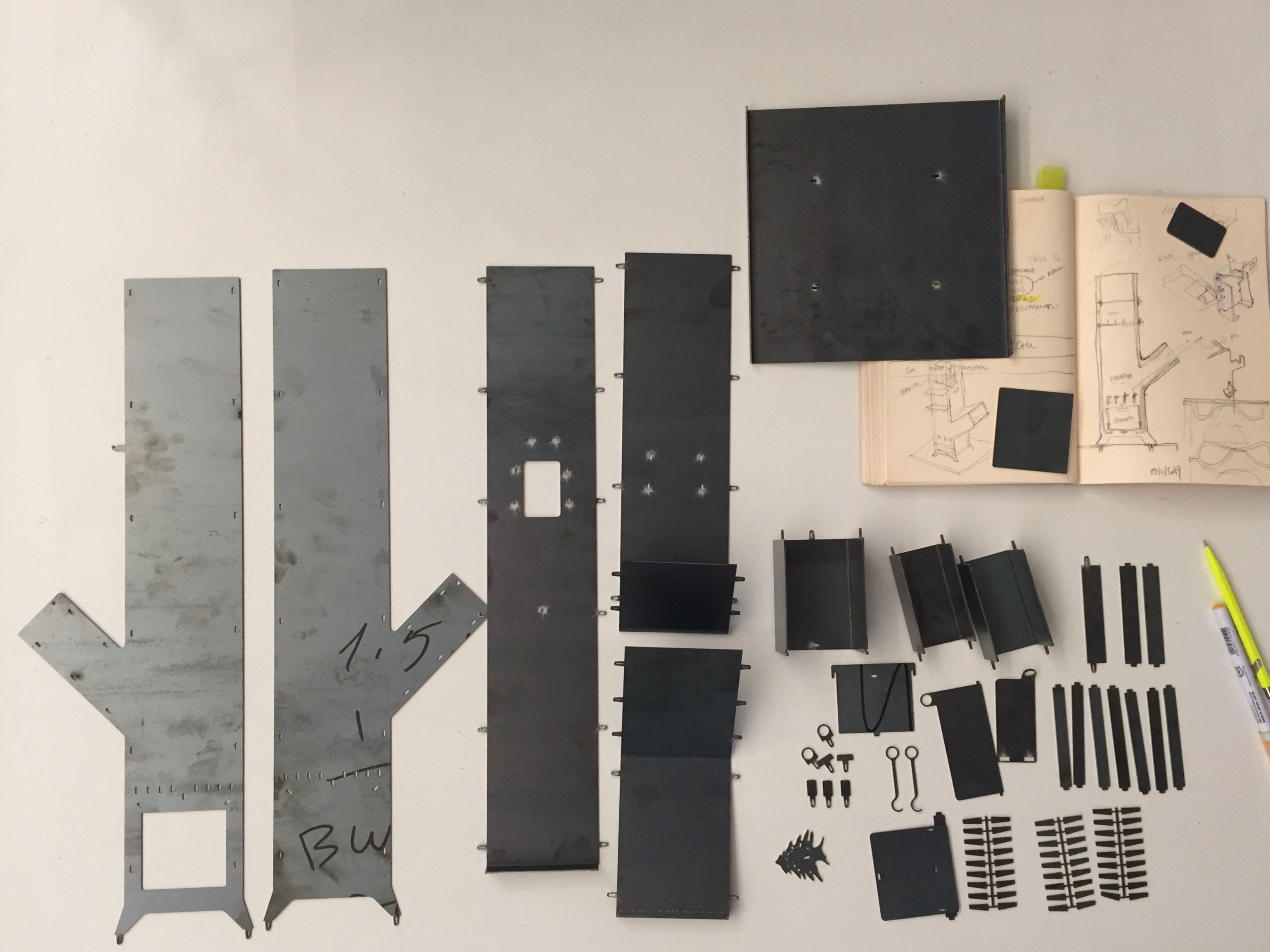

Sobya't Thawra - Laser cut steel pieces prior to assembly

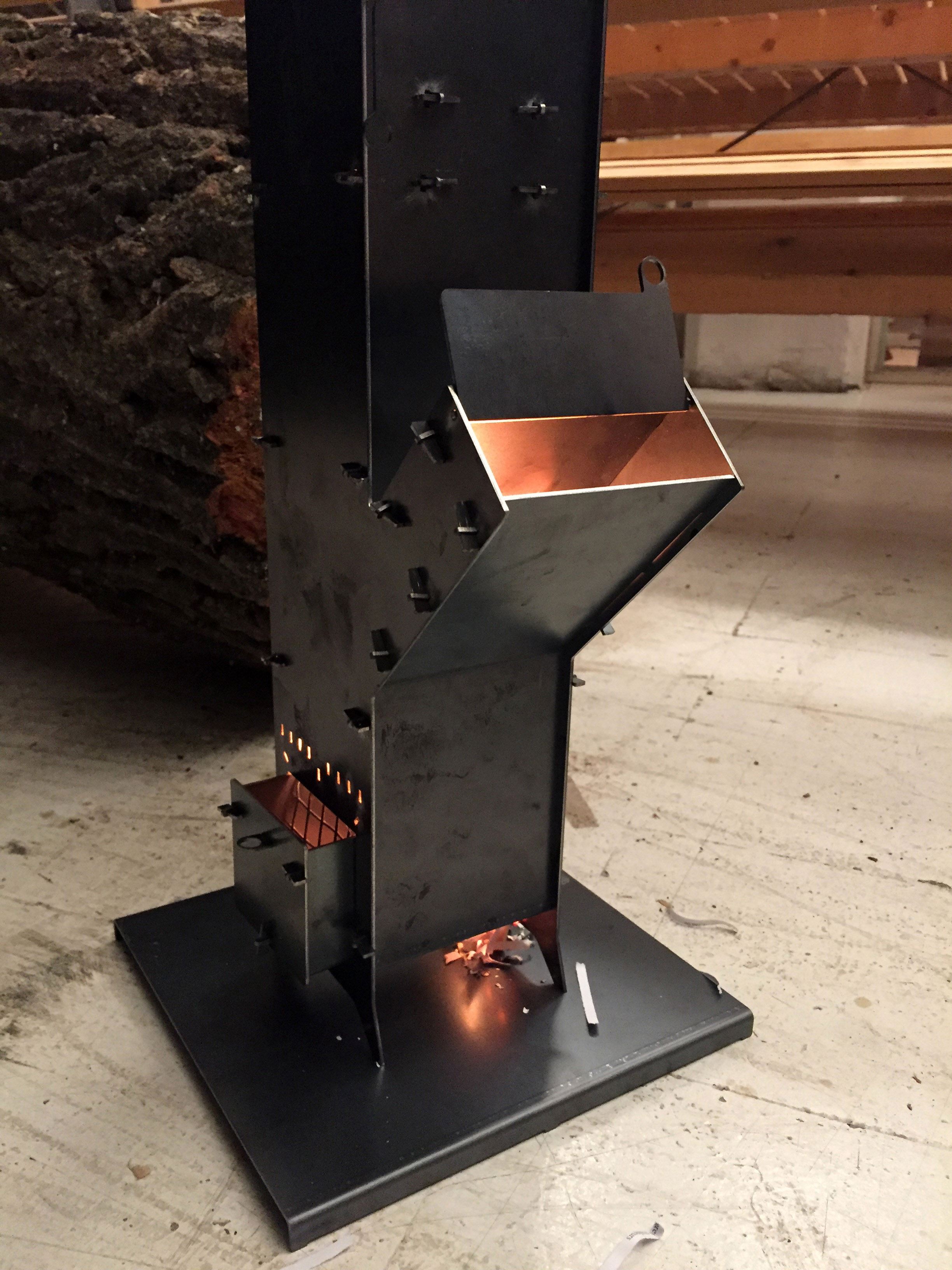

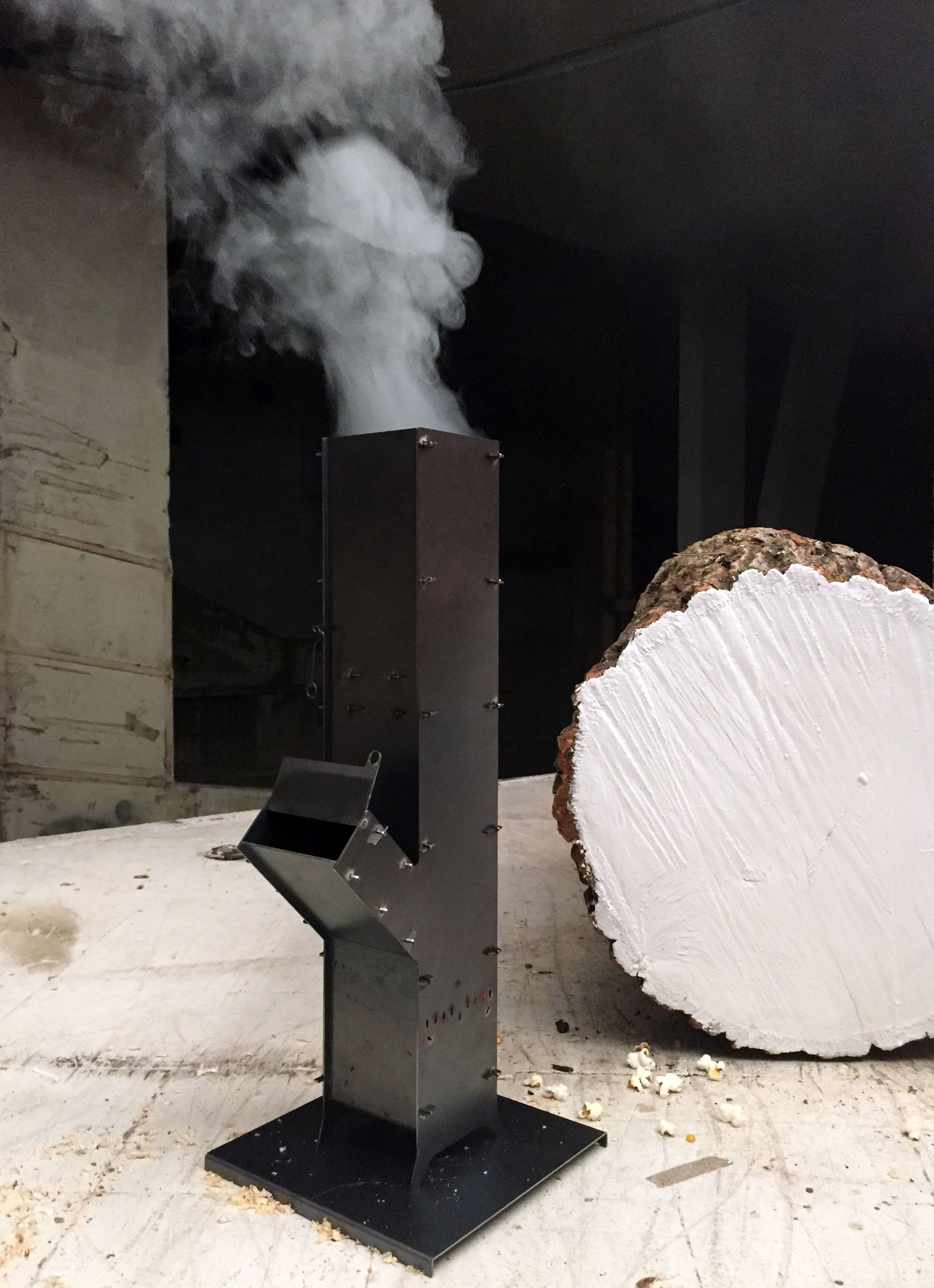

Sobya't Thawra - Testing the scale model
Sobya't Thawra - Testing the scale model

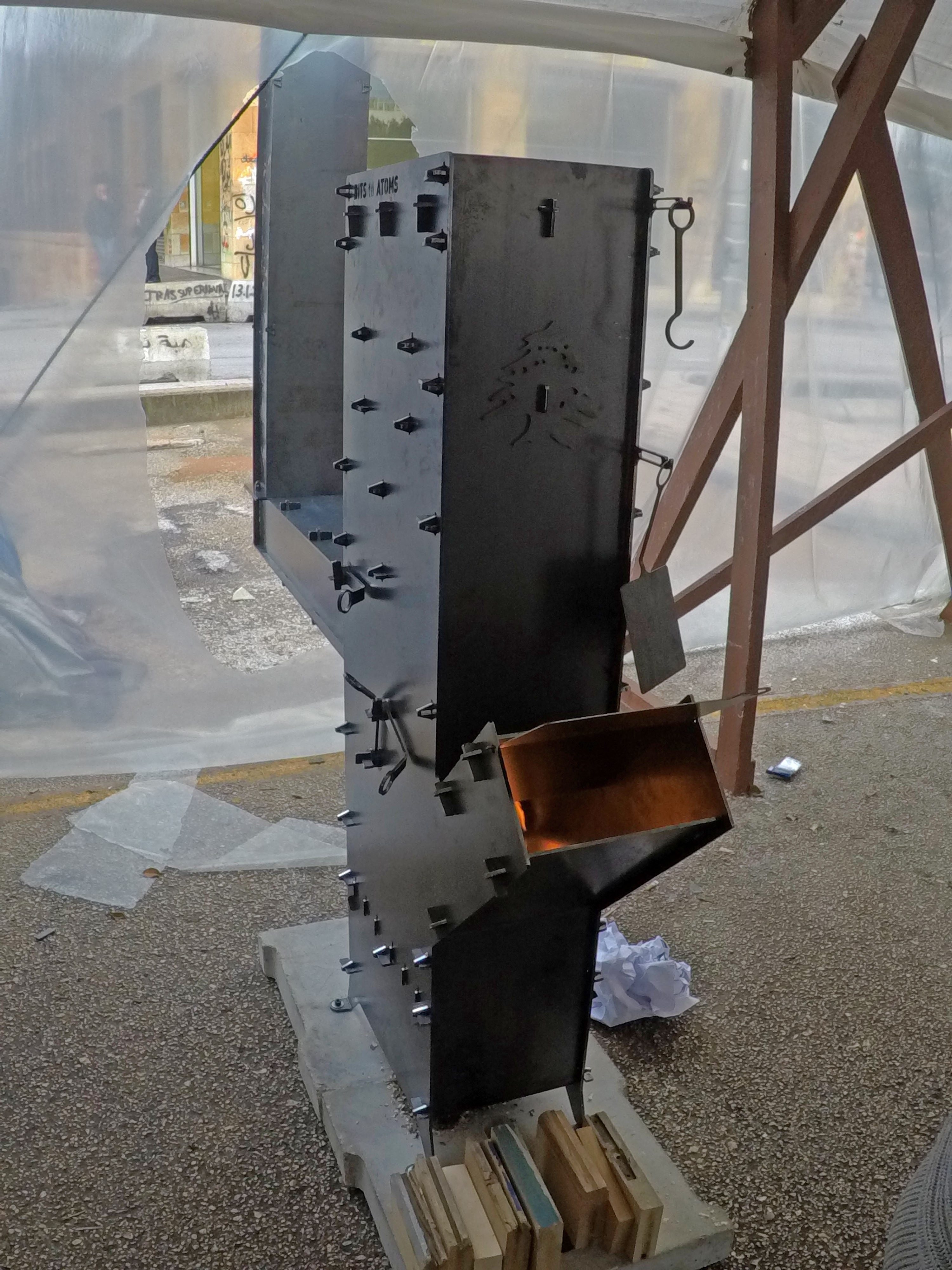

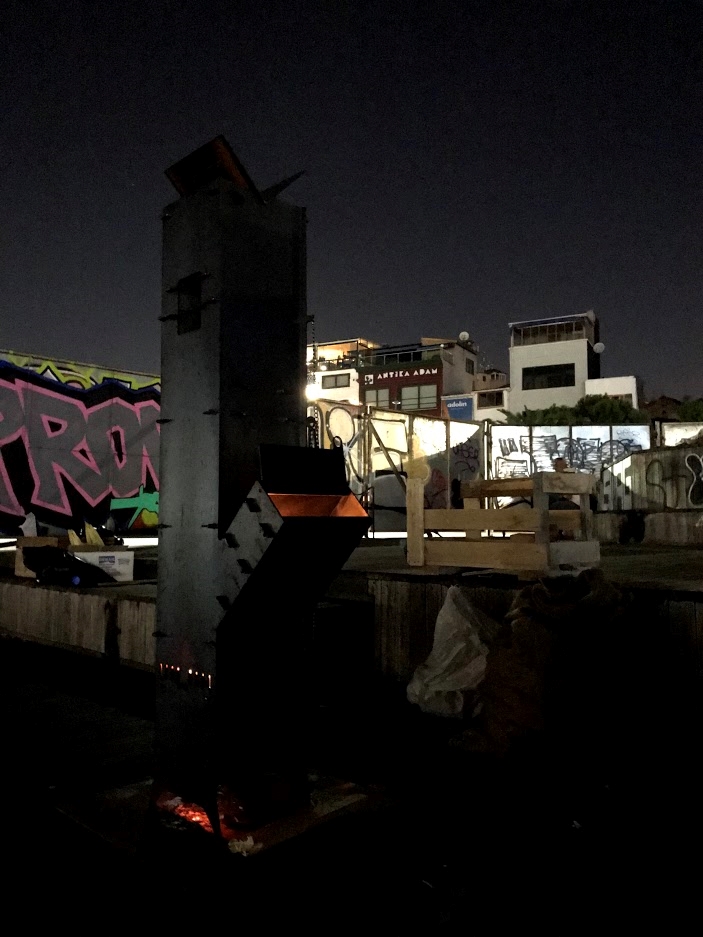

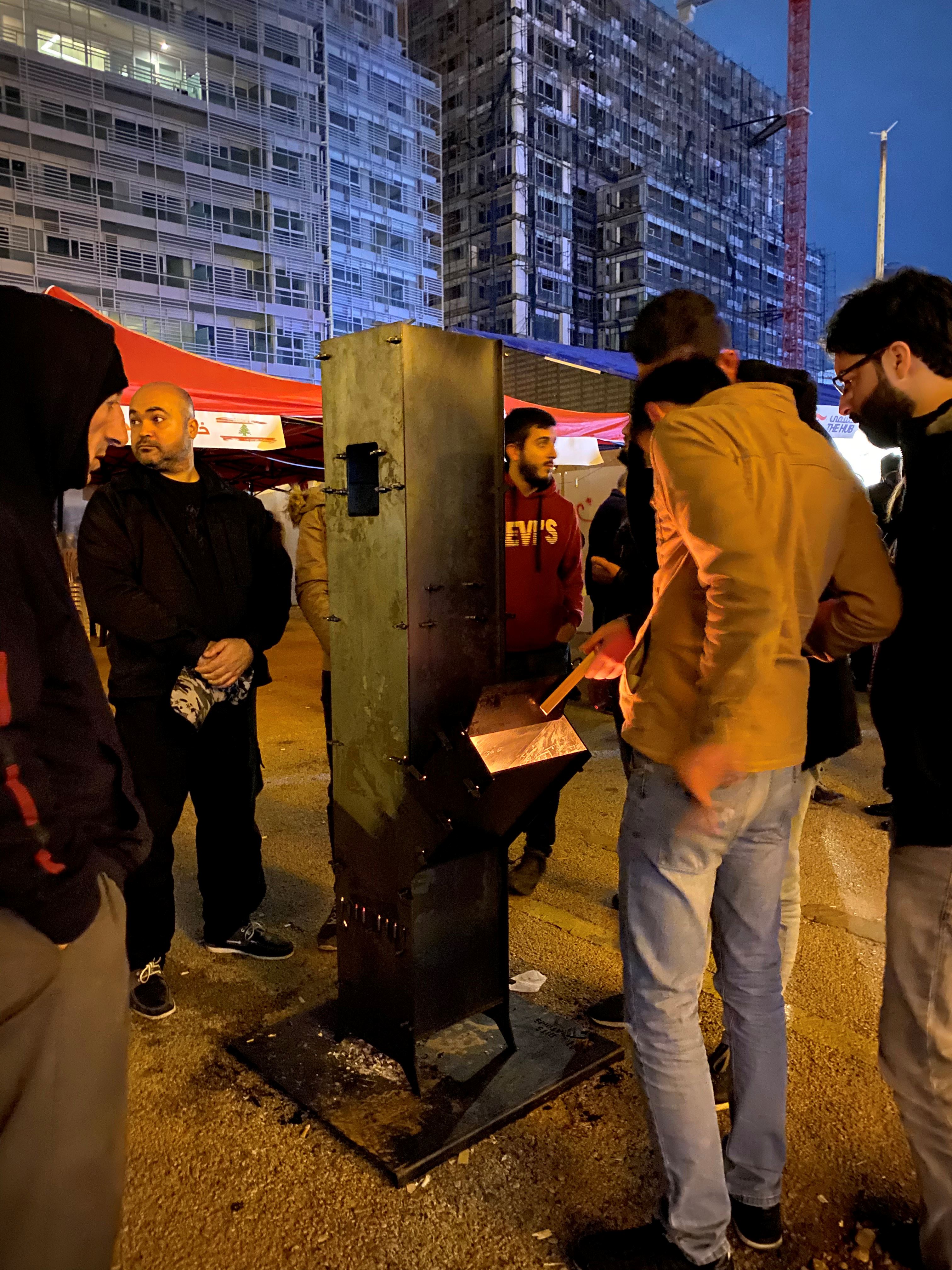

Sobya't Thawra - Actual sobya installed on Martyr's Square
Sobya't Thawra - 2.3
Sobya't Thawra - 2.3

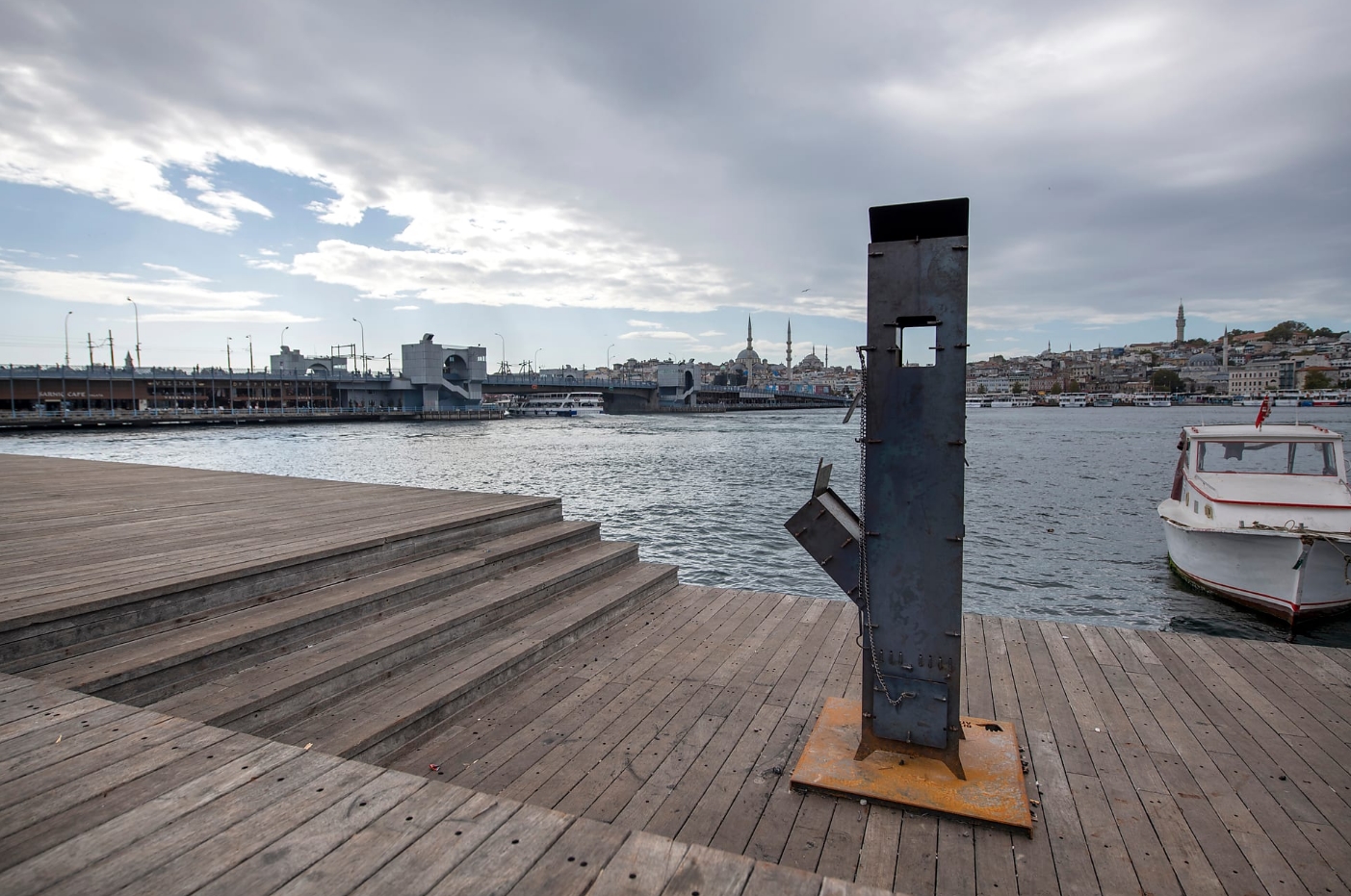

Sobya't Thawra on Karakoy Pier (credits: Kayhan Kahgusuz)
Sobya't Thawra on Karakoy Pier (credits: Eylul Senses)
More In
Projects
..
..Next
Projects

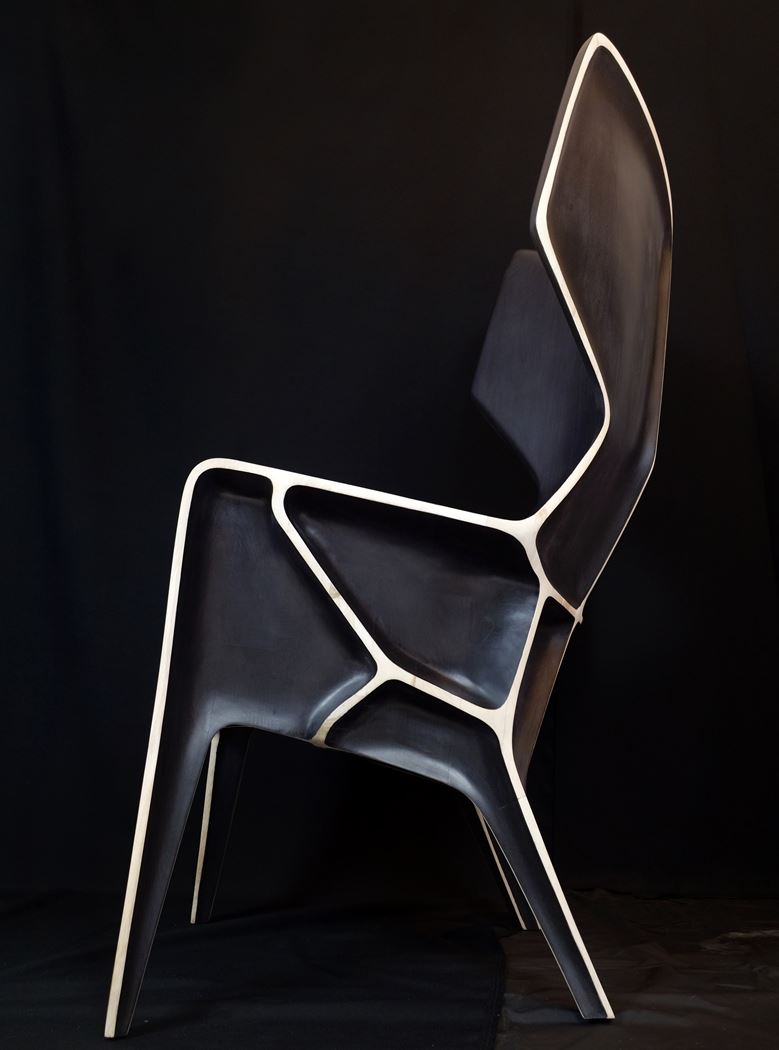

"La Grande Chaise"
Minuscule Lamp Collection

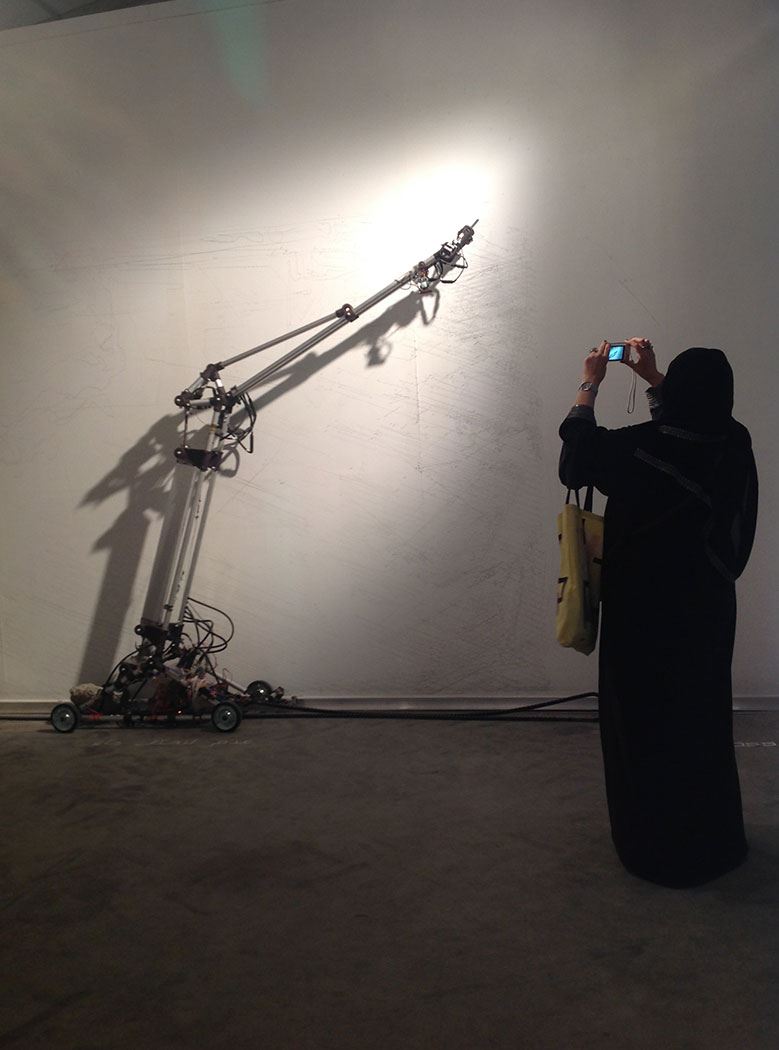

The Obsessive Drafter
Baskinta Lebanese Mountain House reconstruction
DAWI'I wood lamp
DAWI'II Wood Lamp
Efficient Fictions Book
Hence, recycled aluminum chair
Jeddah National Theater, Saudi Arabia
Industrial 7 axis cell
Big Voxel 3D printer
DAW'III Wood Lamp
House in Jbeil, Restoration and Extension
PMDC HeadQuarters
UBIC flexible architecture system
Pulp Fusion - Paper Chair Project
Urban Bird Houses
Wall House in baskinta, Lebanon
Abwab Pavilion - Dubai Design Week (DXBDW)
Babylon Business Hub
Wood salt & pepper grinder
Twisted Planes, parametric fabrication
Concruence chair
Madina City Museum
Sea Urchins
Beirut Makers open collective
Two Islands, biotop and architecture design
The Basket a Handicraft & Design Hub for Jeddah
3 Houses in Faraya, Lebanon
Beirut Culture and Arts House, Lebanon
Beit Ghouyoum / Maison des Nuages
Bridge House, Lebanon

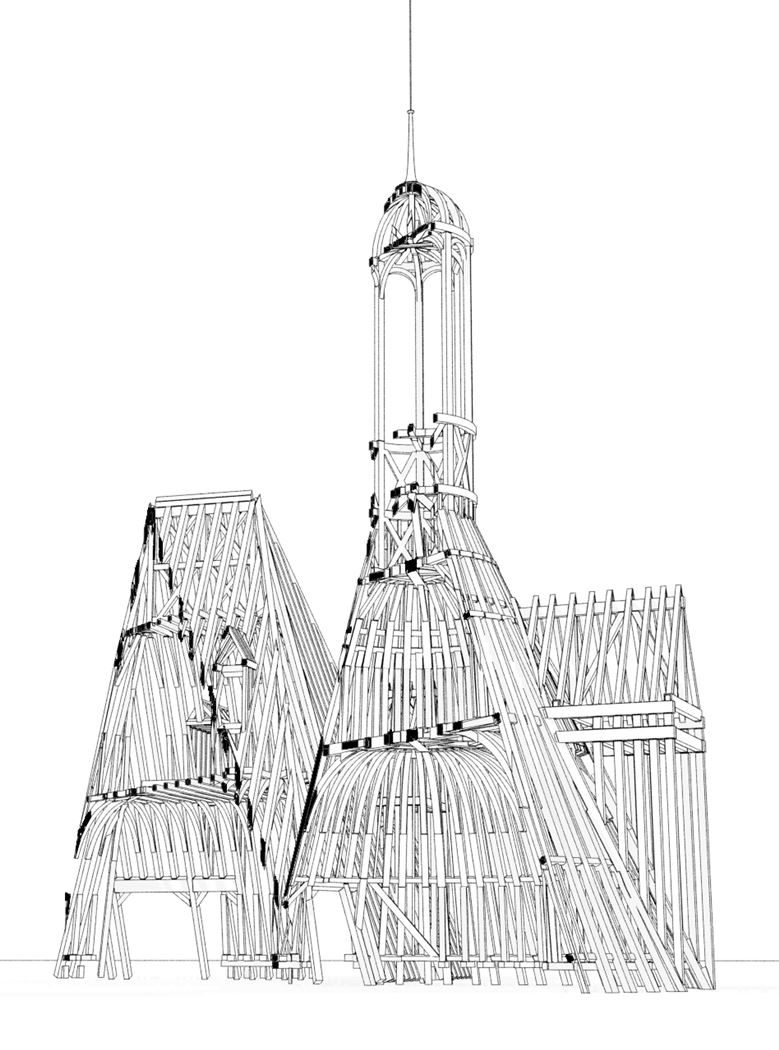

Chateau de Chambord, 3D survey and research
